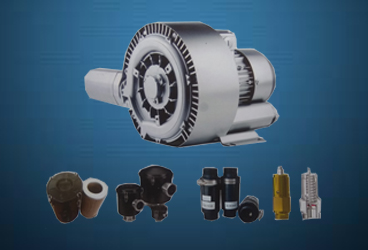

TURBINE BLOWER

We manufacture Turbine Blowers, Exhausters ,Regenerative Blowers,Side Channel Blowers , Side Channel Blowers And Vortex Blowers.Our Product are Widely Approved And Accepted For Applications In Industries Such as Pneumatic Coneyors, Industrial Vacuum Cleaner, Dust Collecting Systems,Confectionery Machines,Cable Making Machinery, Printing Machinery , Pharmaceuticals Machinery , Plastics Machinery ,Packaging Machinery , Electroplating & P.C.B Mfg. Drying Process.

Awesome Image
      Specification
Model   HP Capcity M3/HR Max Press. MBAR Max Vacu. MBAR
FAD 50/1 0.5 80 80 75
FAD 50/2 0.5 40 125 115
FAD 100/1 1 200 135 120
FAD 100/2 1 100 205 190
FAD 100/1-A 1.5 100/100 95/95 85/85
FAD 200/1 3 400 195 180
FAD 200/2 3 200 300 280
FAD 3 3 300 240 230
FAD 250/1-A 5 600 225 210
FAD 250/2-A 5 300 340 325
FAD 200/4 5 200 540 400
FAD 250/1 7.5 600 245 240
FAD 250/2 7.5 300 385 365
FAD 7.5 7.5 900 290 270
FAD 600/1 12.5 1200 280 250
FAD 600/2 12.5 670 490 360
FAD 800/1 20 1500 280 250
FAD 800/2 20 800 480 340
FAD 150/1 2 300 197 184
FAD 225/1 3 400 258 217
FAD 225/2 3 300 360 299
FAD 275/1 7.5 600 394 319
FAD 275/2 7.5 300 516 380

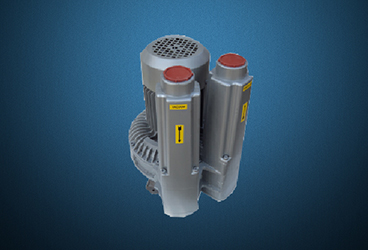

DIMENSIONS OF TURBINE BLOWERS/EXHAUSTERS.

Awesome Image
-
Model LENGTH (MM) WIDTH (MM) HEIGHT (MM) MTG P.C.D WEIGHT (KG) NOISE LEVEL (DB/1Meter) INLET/ OUTLET DIA(MM)s
FAD 50/1 269 236 270 M6X15, 3 ON 176 19 68 34
FAD 50/2 269 236 270 M6X15, 3 ON 176 19 65 34
FAD 100/1 343 285 425 M6X15, 3 ON 210 30 66 49
FAD 200/1 396 348 530 M8X15, 3 ON 260 50 72 60
FAD 200/2 396 348 530 M8X15, 3 ON 260 51 72 60
FAD 250/1 568 410 615 M8X15, 3 ON 312 83 75 76
FAD 250/2 568 410 615 M8X15, 3 ON 312 84 72 76
FAD 600/1 570 515 730 M8X15, 3 ON 320 78 114
FAD 600/2 570 515 730 M8X15, 3 ON 320 - 78 114
FAD 800/1 630 560 - M10X15, 3 ON 399 - - 150
FAD 800/2 630 560 - M10X15, 3 ON 399 - - 150
FAD 225/1 440 395 590 M8X15, 3 ON 322 - 74 60
FAD 225/2 440 395 590 M8X15, 3 ON 322 - 74 60
FAD 275/1 525 465 645 M8X15, 3 ON 342 - 75 76
FAD 275/2 525 465 645 M8X15, 3 ON 342 - 76 76
FAD 150/1 385 335 430 M8X30,3 ON 268 - 77 49

SCB 3 400 400 430 M8X15, 3 ON 270 43 72 49
SCB 7.5 500 500 830 M8X15, 3 ON 310 86 72 114

ALL DIMENSIONS ARE IN MM. SINCE IMPROVEMENTS ARE MADE FROM TIME TO TIME, DIMENSIONS MAY VARY.

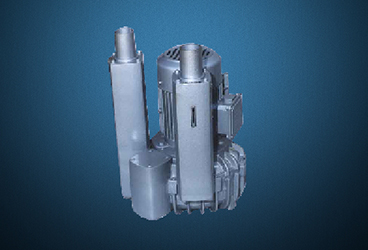

TURBINE BLOWERS, SIDE CHANNEL BLOWERS, VORTEX BLOWERS

Awesome Image
PRESSURE MM WG 0 500 1000 1500 2000 2500 3000 3500 NOISE LEVEL
MODEL HP
FAD 50/1 0.5 80 30             68 DB
FAD 50/2 0.5 26 40 10           65 DB
FAD 100/1 1 200 125 50           66 DB
FAD 100/2 1 100 70 50 30 5       66 DB
FAD 200/1 3 400 250 160 70 10       75 DB
FAD 200/2 3 200 150 110 75 50 25 5   72 DB
FAD 250/1 7.5 600 450 300 180 60 5     75 DB
FAD 250/2 7.5 300 270 250 210 180 130 80 30 72 DB
SCB-3.0 3 350 280 220 150 60       72 DB
SCB-7.5 7.5 850 675 475 325 125 35     74 DB
FAD 600/1 12.5 1200 980 840 680 500 300     76 DB
FAD 600/2 12.5 700 630 570 510 350 310 290 75 DB 290
FAD 800/1 20 1500 1240 1090 850 660 400   Without Silencer
FAD 225/1 3 460 376 296 188 90 - - - 88 DB
FAD 225/2 3 325 270 215 175 108 58 25 - 74 DB
FAD 275/1 7.5 600 538 403 309 282 - - - 78 DB
FAD 275/2 7.5 300 270 244 220 205 180 160 145 79 DB
FAD 150/1 2 296 215 120 54         79 DB

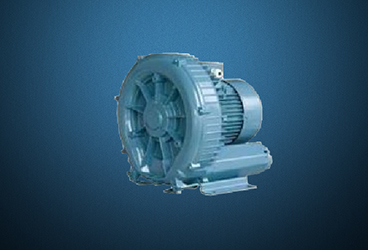

TURBINE BLOWERS, SIDE CHANNEL BLOWERS, VORTEX BLOWERS

Awesome Image

Turbine Blower
VACUUME MM WG 0 500 1000 1500 2000 2500 3000 3500 NOISE LEVEL
MODEL HP
FAD 50/1 0.5 100 40             68 DB
FAD 50/2 0.5 60 40 10           65 DB
FAD 100/1 1 200 145 40           66 DB
FAD 100/2 1 130 90 40 20         66 DB
FAD 200/1 3 420 370 370 370 65       75 DB
FAD 200/2 3 300 220 190 140 70 20     72 DB
FAD 250/1 7.5 540 450 400 100         75 DB
FAD 250/2 7.5 300 270 240 200 160 110 70 15 72 DB
SCB-3.0 3 350 250 185 90 20       72 DB
SCB-7.5 7.5 850 675 450 410 250 25     74 DB
FAD 600/1 12.5 1200 940 780 620 400 190     76 DB
FAD 600/2 12.5 700 600 500 410 290 210 170   75 DB
FAD 800/1 20 1500 1140 990 650 440     Without Silencer
FAD 225/1 3 363 296 228 148 - - -   88 DB
FAD 225/2 3 282 228 175 135 70 58 25 - 74 DB
FAD 275/1 7.5 600 538 470 350 290 148 -   77 DB
FAD 275/2 7.5 300 260 230 200 190 160 140   79 DB
FAD 150/1 2 296 202 100 20 - - -   77 DB
Awesome Image

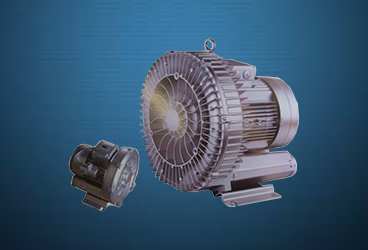

Turbine Blower
MODEL POWER DISPLACEMENT VACCUM PRESSURE SOUND WEIGHT
SPB-1-80 0.5 HP 80 M3 / Hr / 47 CFM -130 mbar 140mbar 62DB 12kg
SPB-1-145 1.0 HP 145 M3 / Hr/ 85 CFM -150 mbar 160 mbar 63DB 14KG
SPB-1-210F 1.25HP 210 M3 / Hr / 123CFM -110 mbar 100 mbar 65 DB 20KG
SPB-1-210L 1.5 HP 210 M3 / Hr/ 123CFM -170mbar -170mbar 64DB 22KG
SPB-1-210 2.0HP 210 M3 / Hr/ 123CFM -190mbar 200mbar 70DB 23KG
SPB-1-210P 3.0HP 210 M3 /Hr/ 123 CFM -230mbar 250 mbar 67DB 27KG
SPB-1-320V 4.0HP 320 m3 / Hr / 188 CFM -270 mbar 290 mbar 69DB 37 KG
SPB-1-400 5.0HP 400 m3 / Hr / 235 CFM -290 mbar 330 mbar 77 DB 40 KG
SPB-530 7.5HP 530 m3 / Hr / 312 CFM -300 mbar 320 mbar 80 DB 62 KG
SPB-530P 10.0 HP 530 m3 / Hr / 312 CFM -320 mbar 380 mbar 82 DB 68 KG
SPB-1-1050 11.0 HP 1050 m3 / Hr / 618 CFM -210 mbar 210 mbar 74 DB 93 KG
SPB-1-1050P 16.5 HP 1050 m3 / Hr / 618 CFM -280 mbar 280 mbar 74 DB 116KG
SPB-1-1050SP 24.5 HP 1050 m3 / Hr / 618 CFM -380 mbar 460 mbar 74 DB 126 KG
Awesome Image

Turbine Blower
MODEL POWER DISPLACEMENT VACCUM PRESSURE SOUND WEIGHT
SPB-DB-88 1.0 HP 88 M3 / Hr -210 mbar 140mbar 55DB 14kg
SPB-DS-110 1.25 HP 110 M3 / Hr -200 mbar 230 mbar 58DB 17KG
SPB-DS-150 2.0 HP 150 M3 / Hr -280 mbar 280 mbar 66 DB 24KG
SPB-DS-150P 3.0 HP 150 M3 / Hr -330 mbar 440 mbar 66DB 27KG
SPB-DS-230 4.0 HP 230 M3 / Hr -340 mbar 410 mbar 72 DB 39 KG
SPB-DS-230P 5.0 HP 230 M3 / Hr -390 mbar 490 mbar 72DB 44 KG
SPB-DS-320V 7.5 HP 320 M3 / Hr -440 mbar 500 mbar 73 DB 70 KG
SPB-DS-320P 10.0 HP 320 M3/Hr -440 mbar 570 mbar 73 DB 77 KG
SPB-DS-520 15.0 HP 520 M3 / Hr -430 mbar 660 mbar 74 DB 88 KG
SPB-DS-1110p 27.0 HP 1110 M3 /Hr -440 mbar 500 mbar 74 DB 204 KG
SPB-DS-1110HP 33.0 HP 1110 M3 / Hr -440 mbar 590 mbar 74 DB 211 KG
SPB-DS-2050 27.0 HP 2050 M3/ Hr -250 mbar 230 mbar 75 DB 230 KG
SPB-DS-2050HP 33.0 HP 2050 M3/ Hr -310 mbar 280 mbar 75 DB 235 KG
