CENTRIFUGAL BLOWERS

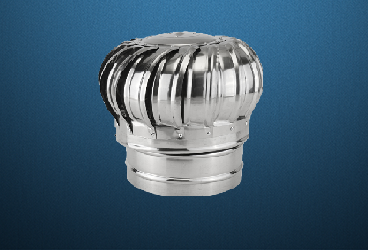

Turbo Air Ventilators
Principal of Operations :
Centrifugal force created by rotating vanes of Turbovent, create low pressure zone which draws fresh air from outside, thus replacing polluted air / hot air continously to atmosphere.
Construction :
Strong, light weight constructions, available in aluminium and stainless steel and also epoxy paints can be done on request.
Applications :
CFactories, Ware houses, workshops, industrial shades, Domestic Application
ADVANTAGES OF TURBO AIR VENTILATORS :
- Cost-effective investment.
- No Operational and maintance cost.
- Ideally suited for buildings with explosive environment.
- Assured ventilation for 24hrs./365 days.
- Easily mounted on any Roofing.
General air Change rate Require for Various Application :
| Types of Building | Air Change Rate / Hour |
|---|---|
| Factories | 10-30 |
| Ware House | 5-10 |
| Textile | 4-12 |
| Paper Mills | 8-30 |
| Engine Room | 10-30 |
| Packaging Industries | 10-30 |
| Transformer Room | 10-30 |
| Paint Shop / Boiler Room | 20-50 |
Specifications of turbo air Ventilators :
| Dimension | 28" | 32" |
|---|---|---|
| Effective Throat Diameter | 21" | 24" |
| Overall Height | 350 mm | 400 mm |
| Overalll Diameter | 700 mm | 800 mm |
| No. of Vanes | 36 | 42 |
